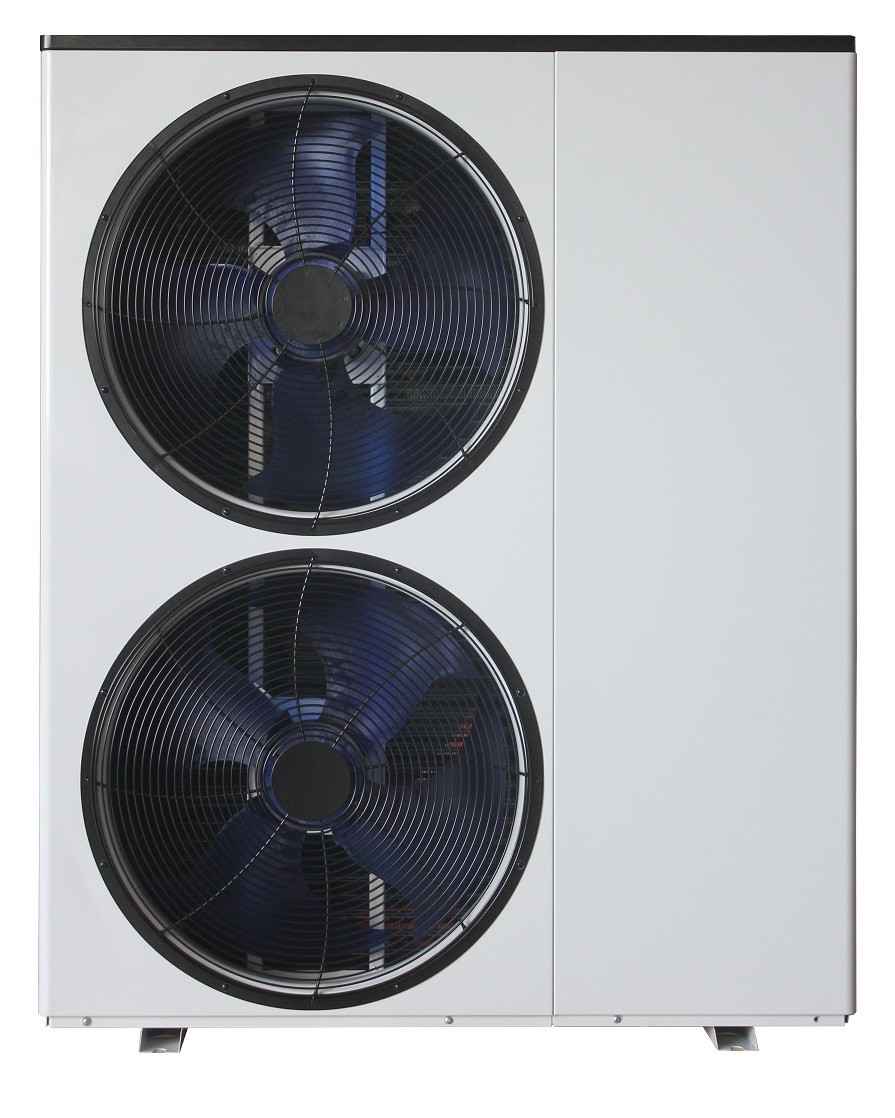

14KW DC Air to Water Heat Pump(SHAW-14CH)
14KW DC Air to Water Heat Pump(SHAW-14CH)
14KW DC Air to Water Heat Pump(SHAW-14CH)
14KW DC Air to Water Heat Pump(SHAW-14CH)
14KW DC Air to Water Heat Pump(SHAW-14CH)
14KW DC Air to Water Heat Pump(SHAW-14CH)
Model
SHAW-14CH

Item specifics

Net size
1110*460*1250(mm)
Power supply
220V/1PH/50Hz
Net weight
131KG
Gross weight
141KG
DC Fan motor
50W*2
Circulation pump
Optional
Noise
58dB(A)

Product review

Description

1.      DC inverter heat pumps for heating, cooling and hot water.

2.      Working mode: heating only

3.      14KW, 16KW heating capacity.

4.      Receives ON/OFF signal from room thermostat, master controller and smartgrill system, to save more energy.

5.      Heating curves for more accurate temperature control.

6.      With control for back-up electric heater.

7.      With control for 4-way valve to switch between heating/cooling and hotwater circuits.

8.      Built-in energy-class A circulating pump.

9.      Built-in water flow switch.

10.  Built-in auto air discharge valve.

11.  Automatically variable fan speed in 3 speeds to optimize efficiency.

12.  Fast plugs for wiring between indoor unit and outdoor unit.

13.  Low noise design with noise jacket for compressors, low noise fans andstrong casing to reduce vibration and noise.

14.  We offer OEM service including different components, casing design,painting color, controller functions etc.



Model



SHAW-14CH

SHAW-16CH

SHAW-14CH-1

SHAW-16CH-1

Specification

Heating Capacity

KW

12.9

16.8

14.5

17.8

Heating power input

KW

2.88

4.39

3.54

4.52

Hot water supply

L/h

277

360

310

380

Rated current

A

13.09

19.95

5.38

6.87

COP



4.48

3.83

4.10

3.94

Max. water temperature

60

Rated water temperature

55

Water flow

m3/h

2.30

2.70

2.40

2.70

Water pressure drop

Kpa

28

30

28

30

Net weight

kg

131

135

131

135

Gross weight

kg

141

145

141

145

Noise

dB(A)

58

58

58

58

Water connections

Inch

1"

Power supply



220V/1PH/50Hz

380V/3PH/50Hz

Net dimensions

mm

1110*460*1250

Packing dimensions

mm

1140*470*1380

Standard components

Compressor

Brand

GMCC

Gree

Panasonic

Quantity

1

2

1

Condenser

High efficiency tube in shell

plate heat exchanger

High efficiency tube in shell

Evaporator

Hydrophilic aluminum foil + internal thread copper pipe

4-way valve

Yes

Expansion valve

Electronic expansionn valve

Fan motor

50W*2

Cabinet

Galvanized white metal sheet

Controller

Chinese brand large LCD screen controller

High pressure switch

4.2/3.6MPa

Low pressure switch

0.02/0.15MPa

Working mode

Heating only

Refrigerant

R32

Circulation pump

Optional
