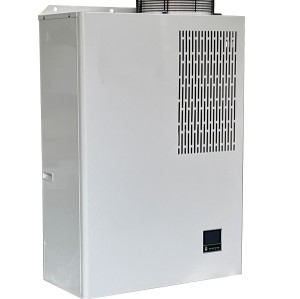

20KW Ground Source Heat Pumps(SHWW-20X)

Item specifics

1. Newdesign, new visible screws outside.

2. Heatingonly or heating/cooling.

3. Allcasing panels are easy to remove for maintenance.

4. Lownoise design, the compressor system is isolated from bottom plate with softrubber mounts.

5. Noisejacket for compressor.

6. Pinvalve is easily accessible for maintenance.

7. Withwater flow switch.

8. Withdrain pipes for heat exchangers.

9. Tube-in-shellheat exchangers for heating only units and plate heat exchangers forheating/cooling units.

10. Canwork with room thermostat, master controller, or smart grill signal.

11. Built-inEnergy Class A circulating pump as standard.

12. Weoffer OEM/ODM service.

	Model		SHWW-13X	SHWW-15X	SHWW-17X	SHWW-20X
Specification	Heating capacity	KW	13	15	17	20
	Heating power input	KW	2.88	3.33	3.75	4.5
	Rated current	A	13.09	15.14	5.70	6.84
	COP		4.51	4.50	4.53	4.44
	Max. water temp.	℃	60
	Rated water temp.	℃	55
	Water flow (using side)	m3/h	2.2	2.6	2.9	3.4
	Water flow (ground source)		2.5	2.9	3.2	3.8
	Net weight	kg	94	95	97	99
	Gross weight	kg	103	104	106	108
	Noise	db	41	41	42	42
	Connection pipe	mm	1"
	Power supply		380V/3PH/50Hz
	Net dimension	mm	660530675
	Package dimension	mm	690560800
Standard components	Compressor	Brand	Panasonic Scroll
	Compressor	Quantiy	1
	Condenser		Plate heat exchanger
	Evaporator		Plate heat exchanger
	4-way valve		No
	Expansion valve		Electronic expansion valve
	Circulation pump		Optional
	Cabinet		Galvanized white metal sheet
	Controller		LCD
	High pressure switch		3.0/2.4MPa
	Low pressure switch		0.02/0.15MPa
	Water flow switch		No
	Pressure gauge		Yes (high pressure gauge)
	Working mode		Only heating
	Refrigerant		R417A
