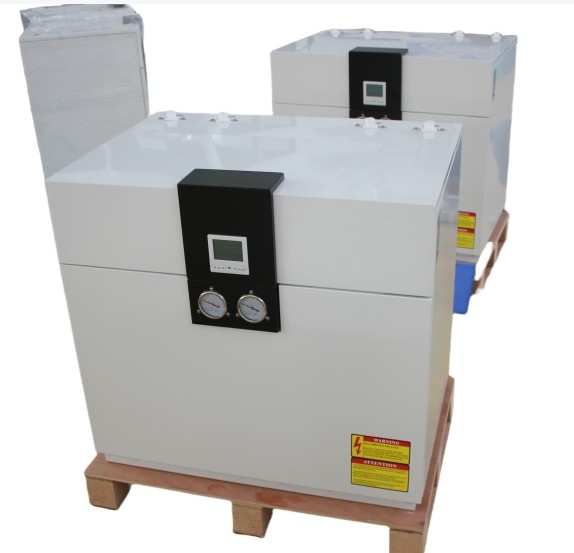

17KW Ground Source Heat Pumps(SHWW-17X)
- Model
- SHWW-17X
Item specifics
- Net size
- 660*530*675(mm)
- Power supply
- 380V/3PH/50Hz
- Net weight
- 97KG
- Gross weight
- 106KG
- Circulation pump
- Optional
- Working mode
- Only heating
- Noise
- 42db
Review
Description
1. Newdesign, new visible screws outside.
2. Heatingonly or heating/cooling.
3. Allcasing panels are easy to remove for maintenance.
4. Lownoise design, the compressor system is isolated from bottom plate with softrubber mounts.
5. Noisejacket for compressor.
6. Pinvalve is easily accessible for maintenance.
7. Withwater flow switch.
8. Withdrain pipes for heat exchangers.
9. Tube-in-shellheat exchangers for heating only units and plate heat exchangers forheating/cooling units.
10. Canwork with room thermostat, master controller, or smart grill signal.
11. Built-inEnergy Class A circulating pump as standard.
12. Weoffer
OEM/ODM service.
|
|
Model |
|
SHWW-13X |
SHWW-15X |
SHWW-17X |
SHWW-20X |
|---|---|---|---|---|---|---|
|
Specification |
Heating capacity |
KW |
13 |
15 |
17 |
20 |
|
Heating power input |
KW |
2.88 |
3.33 |
3.75 |
4.5 |
|
|
Rated current |
A |
13.09 |
15.14 |
5.70 |
6.84 |
|
|
COP |
|
4.51 |
4.50 |
4.53 |
4.44 |
|
|
Max. water temp. |
℃ |
60 |
||||
|
Rated water temp. |
℃ |
55 |
||||
|
Water flow (using side) |
m3/h |
2.2 |
2.6 |
2.9 |
3.4 |
|
|
Water flow (ground source) |
|
2.5 |
2.9 |
3.2 |
3.8 |
|
|
Net weight |
kg |
94 |
95 |
97 |
99 |
|
|
Gross weight |
kg |
103 |
104 |
106 |
108 |
|
|
Noise |
db |
41 |
41 |
42 |
42 |
|
|
Connection pipe |
mm |
1" |
||||
|
Power supply |
|
380V/3PH/50Hz |
||||
|
Net dimension |
mm |
660*530*675 |
||||
|
Package dimension |
mm |
690*560*800 |
||||
|
Standard components |
Compressor |
Brand |
Panasonic Scroll |
|||
|
Quantiy |
1 |
|||||
|
Condenser |
Plate heat exchanger |
|||||
|
Evaporator |
Plate heat exchanger |
|||||
|
4-way valve |
No |
|||||
|
Expansion valve |
Electronic expansion valve |
|||||
|
Circulation pump |
Optional |
|||||
|
Cabinet |
Galvanized white metal sheet |
|||||
|
Controller |
LCD |
|||||
|
High pressure switch |
3.0/2.4MPa |
|||||
|
Low pressure switch |
0.02/0.15MPa |
|||||
|
Water flow switch |
No |
|||||
|
Pressure gauge |
Yes (high pressure gauge) |
|||||
|
Working mode |
Only heating |
|||||
|
Refrigerant |
R417A |
|||||
