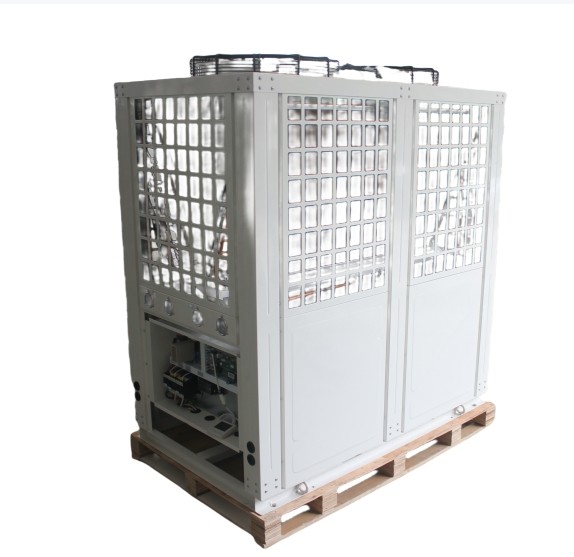

84KW Swimming Pool Heat Pumps(SHPH-84CV)

Model: SHPH-84CV

Item specifics

Net dimensions: 1700*1100*1690(mm)

Packing dimensions: 1750*1150*1820(mm)

Fan motor: 550W*2

Water connections: 3-1/2 inch

Compressor Brand: Sanyo (Copeland optional)

Power supply: 380V/3PH/50Hz

Review

Description

1. Electronic expansion valve.

2. R410A refrigerant.

3. Operating ambient temperature range -5~45DegC.

4. Longer titanium coils inside the condenser, higher COP.

5. Low noise fans, durable fan blades.

6. With heat insulation for titanium heat exchanger.

7. Built-in water flow switch.

8. LCD controller with simple operation.

9. OEM/ODM design.

	Model		SHPH-65CV	SHPH-84CV	SHPH-105CV
Specification	Heating capacity*	KW	52	65	80
	Heating power input*	KW	11.10	14.30	17.7
	Rated current*	A	16.87	21.73	26.89
	COP*		4.68	4.55	4.52
	Heating capacity**	KW	68	85	105
	Heating power input**	KW	11.90	15.10	18.8
	Rated current**	A	18.08	22.94	28.56
	COP**		5.71	5.63	5.59
	Max. water temperature	℃	40
	Rated water temperature	℃	27
	Water flow	m³/h	29.00	36.00	45.00
	Net weight	kg	605	750	800
	Gross weight	kg	625	780	830
	Noise	db	68	70	70
	Water connections	inch	3-1/2"
	Power supply		380V/3PH/50Hz
	Net dimensions	mm	*14809001550*	*170011001690*	200011001690
	Packing dimensions	mm	*15809501680*	*175011501820*	205011501820
Standard components	Compressor	Brand	Sanyo (Copeland optional)
	Compressor	Quantity	2
	Condenser		PVC+Titanium heat exchanger
	Evaporator		Hydrophilic aluminum foil + internal thread copper pipe
	4-way valve		Yes
	Expansion valve		Sanhua electronic expansion valve
	Fan motor		550W*2
	Cabinet		Galvanized white metal sheet
	Controller		Large LCD screen controller
	High pressure switch		4.2/3.6MPa
	Low pressure switch		0.02/0.15MPa
	Working mode		Heating and Cooling
	Refrigerant		R32
	Circulation pump		No (Optional)
Remarks	1. Unit working temperature : -10℃ to 43℃ 2. Test condition: ambient temp: 15℃/11℃, water inlet: 27℃ *Test condition: ambient temp: 24℃/19℃, water inlet: 27℃ 3. The above is the basic configuration. Water pump is not included in. 4. The above price is based on FOB Guangzhou. 5. The above price is calculated based on the current exchange rate, if the exchange rate fluctuation is over 0.5%,the price will be adjusted accordingly. 6. Payment term: 30% TT in advance, the rest is balanced before the shipment. 7. Delivery time: It depends on the condition of the material inventory, usually 10-30 working days.
