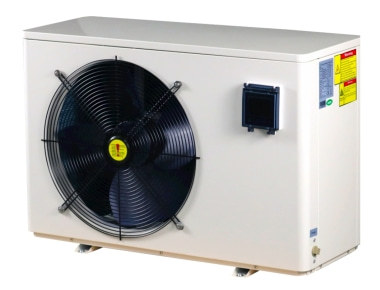

12.5KW DC Inverter Swimming Pool Heat Pump Heaters(SHPH-12.5DC)
- Model
- SHPH-12.5DC
Item specifics
- Max. current
- 16.5A
- WIFI
- YES
- Shell
- Metal
- Unit net dimensions
- 903*390*641(mm)
Review
Description
1. Electronic expansion valve.
2. R410A refrigerant.
3. Operating ambient temperature range -5~45DegC.
4. Longer titanium coils inside the condenser, higher COP.
5. Low noise fans, durable fan blades.
6. With heat insulation for titanium heat exchanger.
7. Built-in water flow switch.
8. LCD controller with simple operation.
9. OEM/ODM design.
MODEL |
|
| SHPH-12.5DC | SHPH-15DC | SHPH-18DC |
|---|---|---|---|---|---|
POWER SUPPLY |
|
| 220V/1/50Hz | 220V/1/50Hz | 220V/1/50Hz |
Heating (Air 26℃ , Water 26℃) | Capacity | KW | 2.85 - 12.82 | 3.56 - 15.39 | 4.3 0- 18.46 |
Power input | KW | 0.21 - 1.83 | 0.28 - 2.43 | 0.34 - 2.91 | |
COP |
| 6.4 - 12.1 | 6.3 - 13.4 | 6.3 - 12.3 | |
Heating (Air 15℃, Water 26℃) | Capacity | KW | 2.23 - 9.24 | 2.84 - 12.3 | 3.19 - 13.34 |
Power input | KW | 0.30 - 1.78 | 0.38 - 0.25 | 0.43 - 2.62 | |
COP |
| 4.9 - 7.3 | 4.9 - 7.4 | 4.9-7.3 | |
Max. current |
| A | 16.5 | 20.0 | 22.3 |
GAS |
|
| R32 | R32 | R32 |
COMPRESSOR |
|
| GREE | ||
|
| FULL INVERTER | |||
MINIMU WORKING OUTSIDE TEMP |
| ℃ | -10 | -10 | -10 |
WIFI |
|
| YES | YES | YES |
SHELL |
|
| Metal | Metal | Metal |
Water connection |
| mm | 50 | 50 | 50 |
Water flow |
| m3/h | 4.2 | 5.1 | 5.9 |
Unit net dimensions |
| mm | 903x390x641 | 903x390x641 | 903x390x641 |
Packing dimensions |
| mm | 950x410x770 | 950x410x770 | 950x410x770 |
Net weight |
| kg | 55 | 60 | 65 |
Noise at 1 m |
| dB(A) | ≤49 | ≤49 | ≤50 |
Noise at 10m |
| dB(A) | ≤30 | ≤30 | ≤31 |
