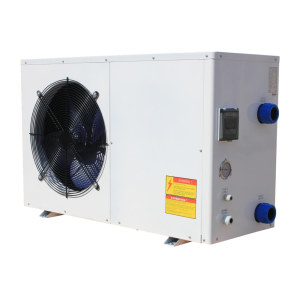

7KW DC Inverter Swimming Pool Heat Pump Heaters(SHPH-7DC)
- Model
- SHPH-7DC
Item specifics
- Unit net dimensions
- 875*351*590(mm)
- WIFI
- YES
- Shell
- Metal
- Max. current
- 10.1A
- Water flow
- 2.5m³/h
Review
Description
1. Electronic expansion valve.
2. R410A refrigerant.
3. Operating ambient temperature range -5~45DegC.
4. Longer titanium coils inside the condenser, higher COP.
5. Low noise fans, durable fan blades.
6. With heat insulation for titanium heat exchanger.
7. Built-in water flow switch.
8. LCD controller with simple operation.
9. OEM/ODM design.
MODEL |
|
| SHPH-5DC | SHPH-7DC | SHPH-10DC |
|---|---|---|---|---|---|
POWER SUPPLY |
|
| 220V/1/50Hz | 220V/1/50Hz | 220V/1/50Hz |
Heating (Air 26℃ , Water 26℃) | Capacity | KW | 1.25 - 5.57 | 1.75 - 7.19 | 2.35 - 10.05 |
Power input | KW | 0.09 - 0.91 | 0.126 - 1.17 | 0.18 - 1.60 | |
COP |
| 6.1 - 12.2 | 6.1 - 12.4 | 6.3 - 12.3 | |
Heating (Air 15℃, Water 26℃) | Capacity | KW | 0.9 - 4.11 | 1.33 - 5.11 | 1.83 - 7.19 |
Power input | KW | 0.12 - 0.82 | 0.17 - 1.01 | 0.25 - 1.41 | |
COP |
| 4.86 - 7.3 | 4.86 - 7.3 | 4.9 - 7.3 | |
Max. current |
| A | 7.3 | 10.1 | 14.3 |
GAS |
|
| R32 | R32 | R32 |
COMPRESSOR |
|
| GREE | ||
|
| FULL INVERTER | |||
MINIMU WORKING OUTSIDE TEMP |
| ℃ | -10 | -10 | -10 |
WIFI |
|
| YES | YES | YES |
SHELL |
|
| Metal | Metal | Metal |
Water connection |
| mm | 50 | 50 | 50 |
Water flow |
| m3/h | 1.9 | 2.5 | 3.4 |
Unit net dimensions |
| mm | 875x351x590 | 875x351x590 | 875x351x590 |
Packing dimensions |
| mm | 925x370x720 | 925x370x720 | 925x370x720 |
Net weight |
| kg | 39 | 43 | 50 |
Noise at 1 m |
| dB(A) | ≤47 | ≤48 | ≤48 |
Noise at 10m |
| dB(A) | ≤28 | ≤29 | ≤29 |
