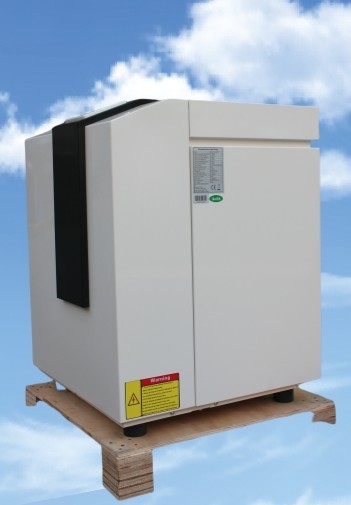

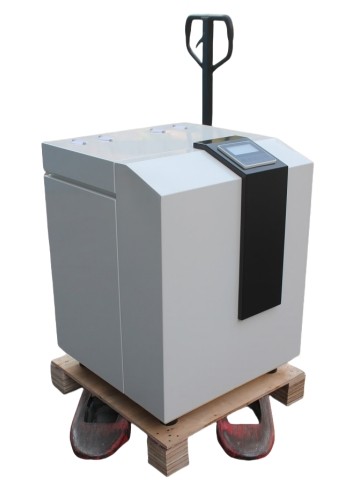

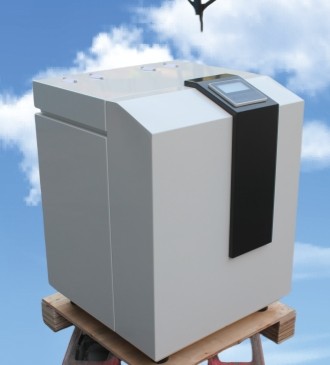

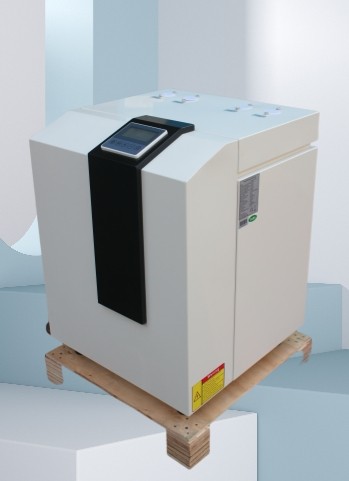

10KW Water Source Heat Pumps(SHWW-10Y)
10KW Water Source Heat Pumps(SHWW-10Y)
10KW Water Source Heat Pumps(SHWW-10Y)
10KW Water Source Heat Pumps(SHWW-10Y)
10KW Water Source Heat Pumps(SHWW-10Y)
10KW Water Source Heat Pumps(SHWW-10Y)
Model
SHWW-10Y

Item specifics

Net size
560*470*675(mm)
Power supply
220V/1PH/50Hz
Net weight
72KG
Gross weight
81KG
Circulation pump
Optional
Working mode
Only heating
Noise
40db

Review

Description

1.   Newdesign, new visible screws outside.

2.   Heatingonly or heating/cooling.

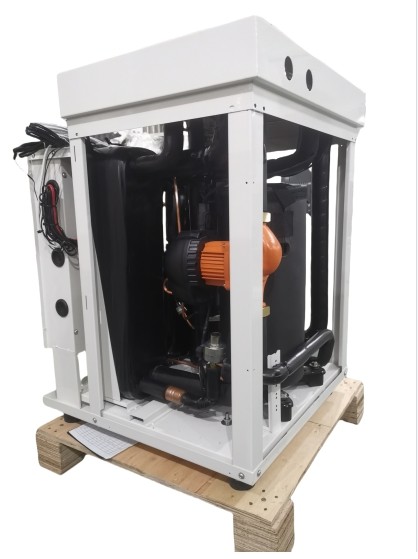

3.   Allcasing panels are easy to remove for maintenance.

4.   Lownoise design, the compressor system is isolated from bottom plate with softrubber mounts.

5.   Noisejacket for compressor.

6.   Pinvalve is easily accessible for maintenance.

7.   Withwater flow switch.

8.   Withdrain pipes for heat exchangers.

9.   Tube-in-shellheat exchangers for heating only units and plate heat exchangers forheating/cooling units.

10. Canwork with room thermostat, master controller, or smart grill signal.

11. Built-inEnergy Class A circulating pump as standard.

12. Weoffer OEM/ODM service.



Model



SHWW-4Y

SHWW-6Y

SHWW-10Y

Specification

Heating capacity

KW

4

6.5

10.2

Heating power input

KW

0.9

1.46

2.3

Rated current

A

4.09

6.64

10.45

COP



4.44

4.45

4.43

Max. water temp.

60

Rated water temp.

55

Water flow (using side)

m3/h

0.7

1.1

1.8

Water flow (ground source)



0.9

1.3

2.0

Net weight

kg

58

66

72

Gross weight

kg

65

74

81

Noise

db

35

38

40

Connection pipe

mm

3/4"

Power supply



220V/1PH/50Hz

Net dimension

mm

560*470*675

Package dimension

mm

590*500*800

Standard components

Compressor

Brand

Highly rotary

Quantiy

1

Condenser

High efficiency tube in shell

Evaporator

High efficiency tube in shell

4-way valve

NO

Expansion valve

Electronic expansion valve

Circulation pump

Optional

Cabinet

Galvanized white metal sheet

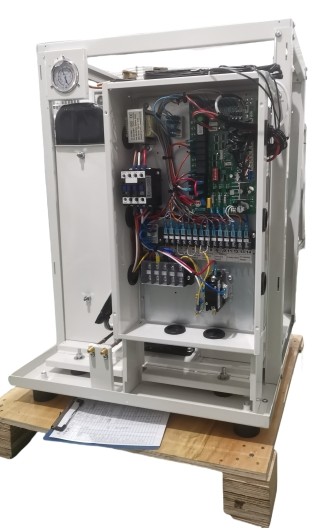

Controller

LCD

High pressure switch

3.0/2.4MPa

Low pressure switch

0.02/0.15MPa

Water flow switch

No

Pressure gauge

Yes (high pressure gauge)

Working mode

Only heating

Refrigerant

R417A
