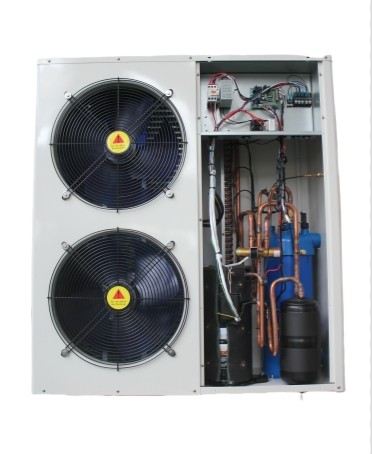

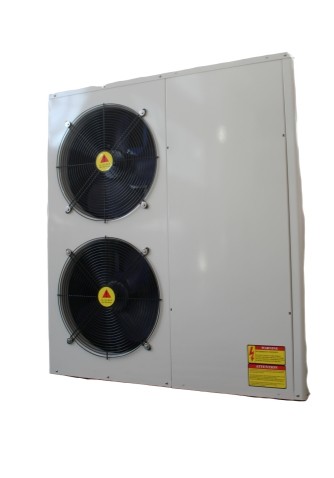

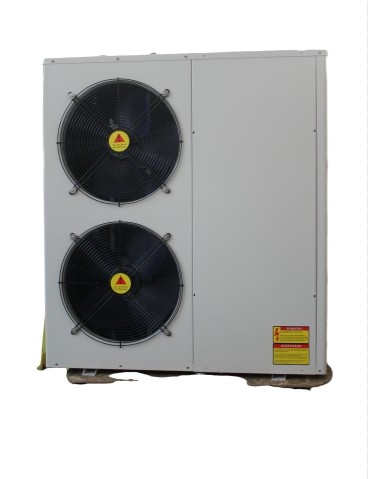

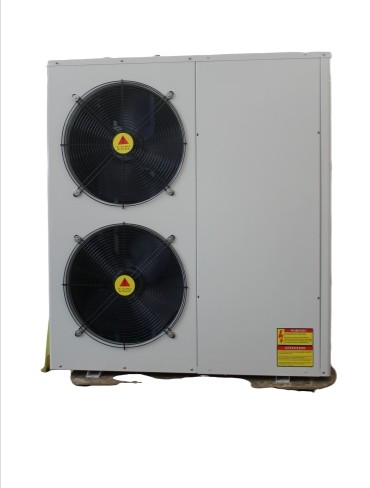

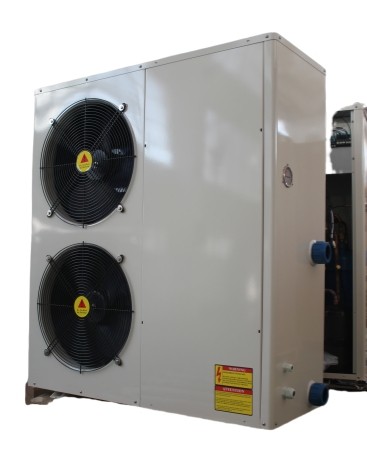

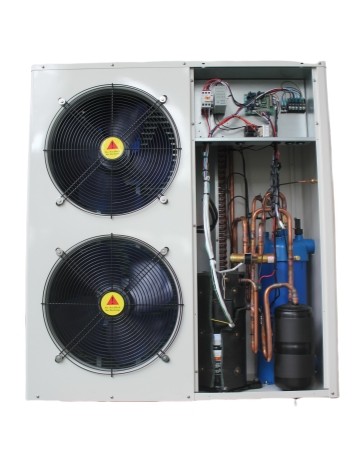

24KW DC Inverter Swimming Pool Heat Pumps(SHPH-24DC)
- Model
- SHPH-24DC
Item specifics
- Unit net dimensions
- 1080*410*940(mm)
- WIFI
- YES
- Shell
- Metal
- Max. current
- 25A
Review
Description
1. Electronic expansion valve.
2. R410A refrigerant.
3. Operating ambient temperature range -5~45DegC.
4. Longer titanium coils inside the condenser, higher COP.
5. Low noise fans, durable fan blades.
6. With heat insulation for titanium heat exchanger.
7. Built-in water flow switch.
8. LCD controller with simple operation.
9. OEM/ODM design.
MODEL |
|
| SHPH-24DC | SHPH-28DC |
|---|---|---|---|---|
POWER SUPPLY |
|
| 220V/1/50Hz | 220/1/50Hz |
Heating (Air 26℃ , Water 26℃) | Capacity | KW | 6.31 - 24.34 | 6.27-28.2 |
Power input | KW | 0.51 - 3.93 | 0.46-4.05 | |
COP |
| 6.2 - 12.4 | 6.3-12.1 | |
Heating (Air 15℃, Water 26℃) | Capacity | KW | 4.37 - 18.92 | 4.91-20.32 |
Power input | KW | 0.59 - 3.88 | 0.66-3.92 | |
COP |
| 4.91 - 7.4 | 4.9-7.3 | |
Max. current |
| A | 25.0 | 36.3 |
GAS |
|
| R32 | R32 |
COMPRESSOR |
|
| GREE | GMCC |
|
| FULL INVERTER | ||
MINIMU WORKING OUTSIDE TEMP |
| ℃ | -10 | -10 |
WIFI |
|
| YES | YES |
SHELL |
|
| Metal | Metal |
Water connection |
| mm | 50 | 50 |
Water flow |
| m3/h | 7.1 | 8.5 |
Unit net dimensions |
| mm | 1080x410x940 | 1080x410x1250 |
Packing dimensions |
| mm | 1130x430x1070 | 1130x430x1380 |
Net weight |
| kg | 73 | 82 |
Noise at 1 m |
| dB(A) | ≤52 | ≤55 |
Noise at 10m |
| dB(A) | ≤33 | ≤35 |
